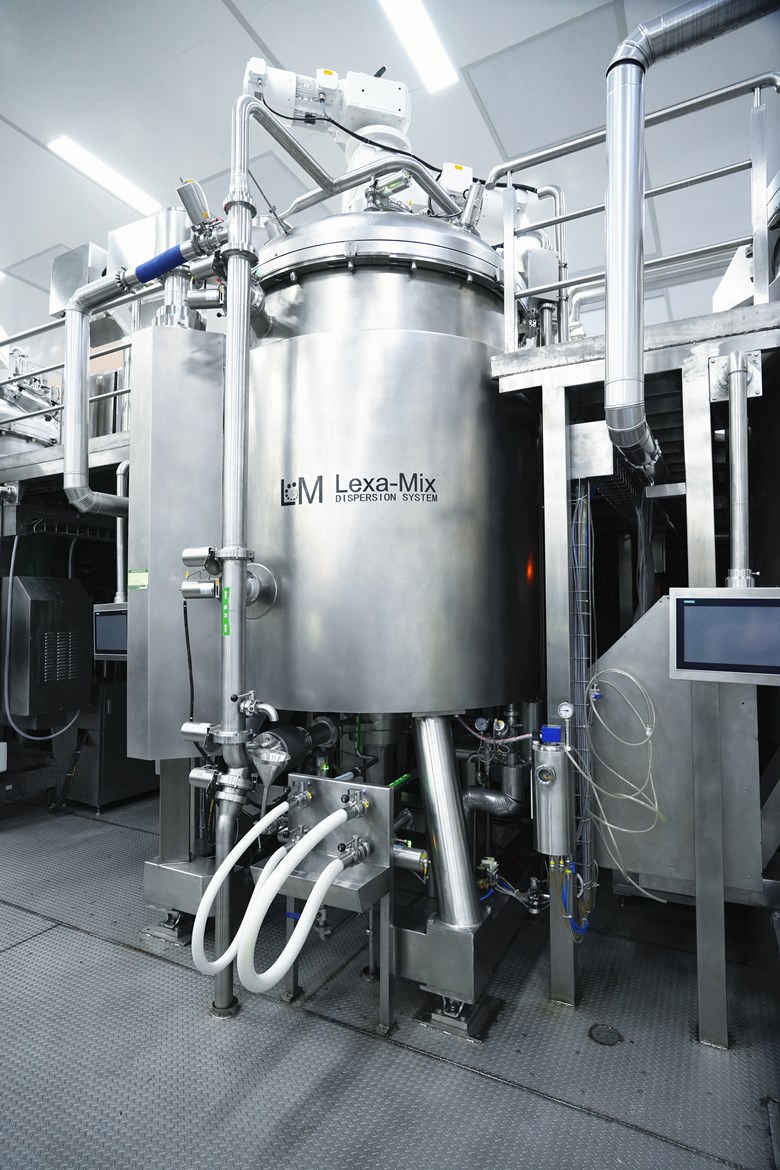

LM-Standard External Circulation (LM-ECR-D)
Modular system: Cream Production Plant, Main Vacuum-Mixerl 3t, Pre-Mix-Vessel 1.200ltr, two Intermediate Storagetanks for Cream Base and two Late-Product-Differentiation(LPD) Vacuum-Mixers, 600 and 1.000ltr.
Technical Description
• Triple wall vessel
- with heating- & cooling jacket, Dish-end bottom and shell(steam/cooling-water).
- Wetted parts AISI 316L, surface Ra=0.8 or better,
• Counter-Rotating Agitator with Frequency Inverter
- The geometrical configuration of the mixing elements are
ensuring an superior mixing in the main product-chamber.
- The Teflon scraper takes care of an excellent heat-transfer between inner Vessel Surface and Product.
- The superior mixing and heat-transfer ensures short batch cycle times (BCT)
• Homogenizer with external circulation, with Frequency Inverter
- There are four Options:
1. with Direct Liquid dispersion,(also Hot-Warm-Cold H-W-C),
2. With external circulation, with Direct Liquid and Powder dispersion,
3. With internal and external circulation
4. Note: 1&2 can be combined
Main Features
° Cost Effective Equipment, with excellent Performance.
° Equipped with Internal CIP-System, driven by Homogenizer re-circulation.
° Full set of automatic Valves, PLC controlled,
° Full Range of equipment sizes, from 5ltr to 10.000ltr.
° Short batch cycle time (BCT),
° Direct Dispersion in Homogeniser,
Options:
° Hydraulic System to lift Agitator out of Vessel,
° Special Thermometer probe placed at rotating shaft,
° Magnetic Flowmeter in Circulation Line,
° Control System, operation can be Automatic or Semi-Automatic, controlled by PLC and Scada-System (GAMP).
° Installation and start up service,
° Modular Systems,
LM-Standard Internal Circulation (LM-ICR-D)
Modular System: Hair-Color Production Plant, Main Vacuum-Mixerl 2t, two Intermediate Storagetanks for Hair-Color Base and two Late-Product-Differentiation(LPD) Vacuum-Mixers, 500 and 750ltr.
Technical Description
• Triple wall vessel
- with heating- & cooling jacket, Dish-end bottom and shell (steam/cooling-water).
- Wetted parts AISI 316L, Surface Ra=0.8micron or better,
• Counter-Rotating Agitator with Frequency Inverter
- The geometrical configuration of the mixing elements are ensuring an superior mixing in the main product-chamber.
- The Teflon scraper takes care of an excellent heat-transfer between inner Vessel Surface and Product.
- The superior mixing and heat-transfer ensures short batch cycle times (BCT)
• Homogenizer with Frequency Inverter
- Inbatch Homogeniser,
Main Features
° Cost Effective Equipment, with excellent Performance.
° Equipped with Internal CIP-System, direct connected to softwater- or DI-Water Loop
° Full set of automatic Valves, PLC controlled,
° Full Range of sizes, from 5ltr to 10.000ltr.
° Short batch cycle time (BCT),
° Direct Dispersion in Homogeniser,
Options:
° Homogenizer equipped with internal Liquid addition Valves (Direct-Dispersion),
° Special Thermometer probe placed at rotating shaft,
° Hydraulic System to lift Agitator
° Control System, operation can be Automatic or Semi-Automatic, controlled by PLC and Scada-System (GAMP).
° Installation and start up service,
° Modelar Systems
